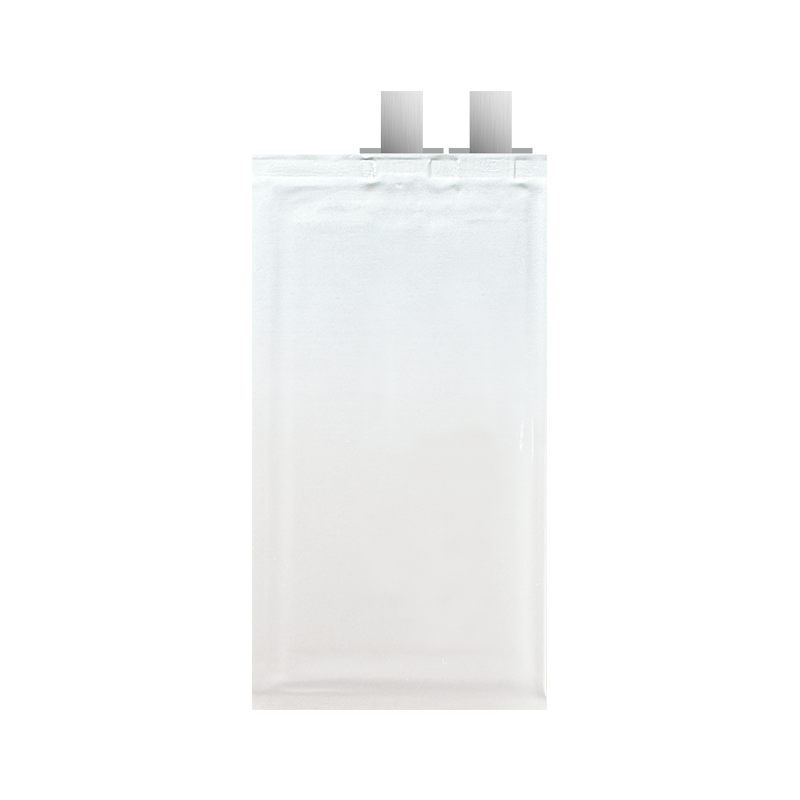

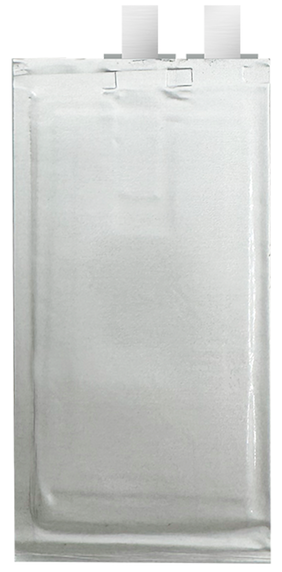

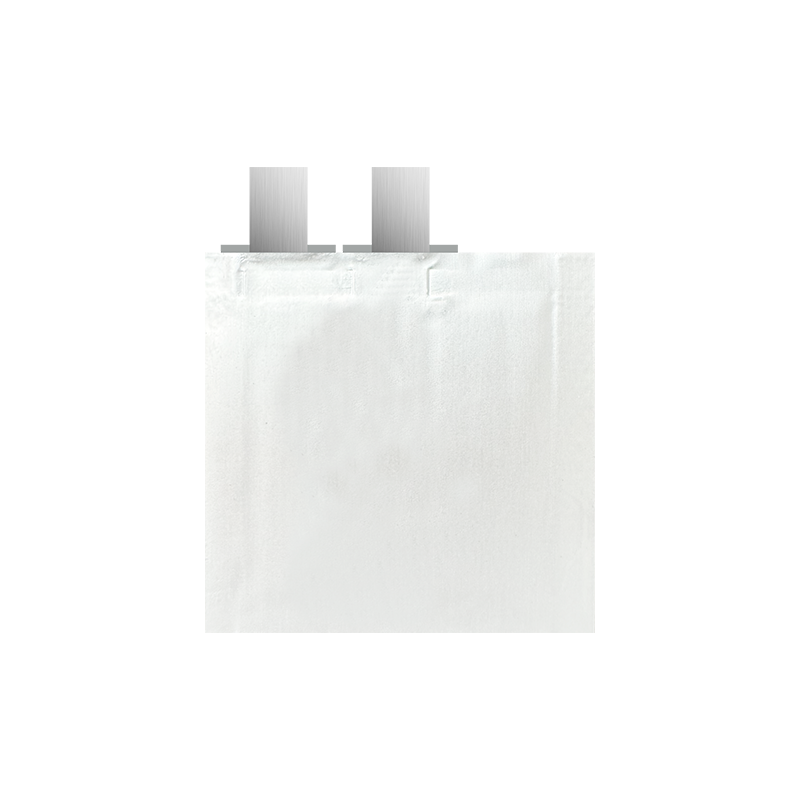

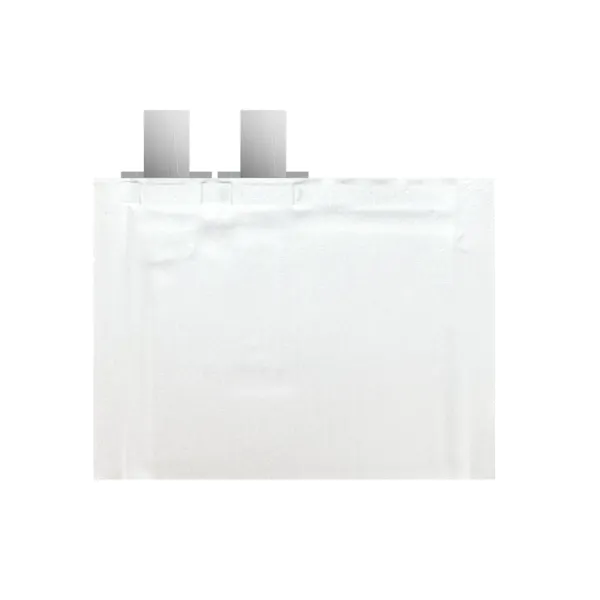

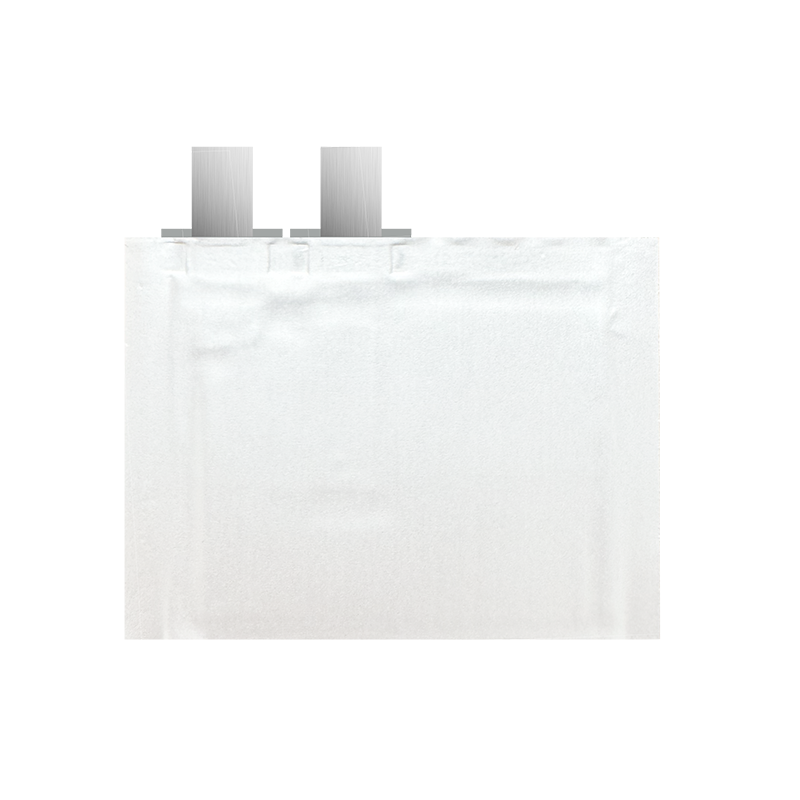

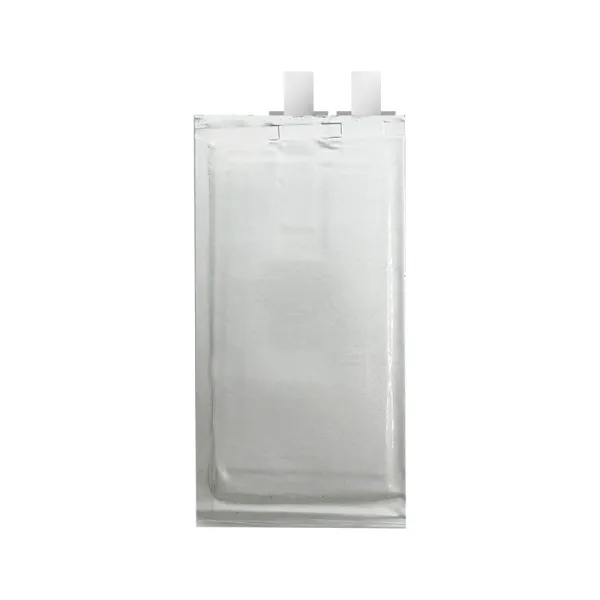

Primary lithium Li/MnO2 Ultra thin (0.4mm-1mm) battery

Features
OEM/ODM primary lithium Li/MnO2 battery

Model: CF042722, CF042039, CF042345, CF052722, CF052039, CF064545 and more

Type: 0.4mm-1mm Ultra thin primary lithium Li/MnO2 battery

High stability and safety.

Flat discharge voltage curve.

Low self-discharge rate and long shelf life.

Self-discharge rate: less than 2% per year at room temperature.

Storage Temperature: -5°C to +35°C

Wide operational temperature range:-20°C to +60°C

Operational temperature of some specific models can be -35°C to +71°C.

Customize batteries and packages are available.

Applications

Intelligent instruments

Credit cards, Gift cards
Card type security systems
Medical Devices

Electronic Tags

GPS system
REID
IOT

Military field etc.

Model	Picture	Nominal Voltage (V)	Nominal capacity (mAh)	Standard discharge current (mA)	Dimension (mm) *DiameterThicknessLengthWidth**	Weight (g)
CF042722		3V	15mAh	0.25mA	∅22.5mm L25.5mmW27.5mmT0.45mm	0.4g
CF042039		3V	25mAh	0.25mA	∅39.5mm L42.5mmW20.5mmT0.45mm	0.5g
CF042345		3V	35mAh	0.25mA	∅22.5mm L45mmW23.0mmT0.45mm	0.8g
CF052722		3V	22mAh	0.25mA	∅22.5mm L25.5mmW27.5mmT0.55mm	0.5g
CF052039		3V	35mAh	0.25mA	∅39.5mm L42.5mmW20.5mmT0.55mm	0.6g
CF064545		3V	150mAh	1.5mA	∅40.0mm L45.0mmW45.0mmT0.6mm	2.1g
