Features

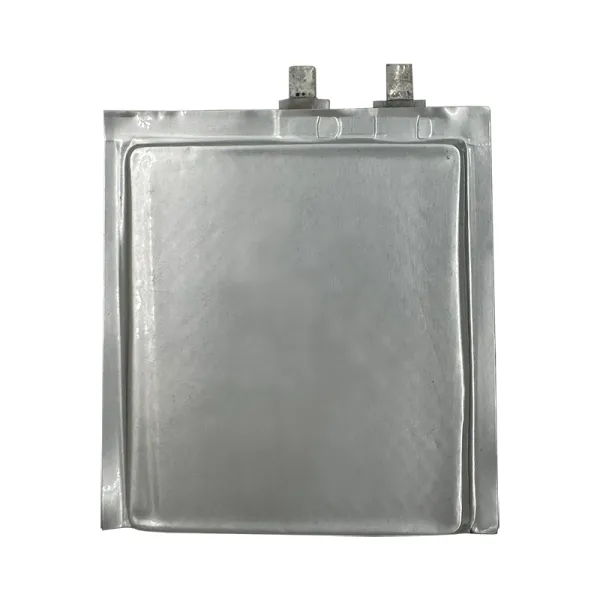

OEM/ODM primary lithium Li/MnO2 battery
Model: CF104848, CF114752, CF124653 and more
Type: Primary lithium Li/MnO2 thin battery
High stability and safety.
Low self-discharge rate and long shelf life.
Self-discharge rate: less than 2% per year at room temperature.
Storage Temperature: -5°C to +35°C
Wide operational temperature range:-20°C to +60°C
Operational temperature of some specific models can be -35°C to +71°C.
Customize batteries and packages are available.
Applications
Intelligent instruments
Credit cards, Gift cards
Card type security systems
Medical Devices
Electronic Tags
GPS system
REID
IOT
Military field etc.
Model | Picture | Nominal Voltage (V) | Nominal capacity (mAh) | Max continuous discharge current (mA) | Storage life (years) | Dimension (mm) Diameter*Thickness*Length*Width | Weight (g) |
CF224248 |  | 3.0V | 850mAh | 100mA | 10 years | Max:L42.0mm*W48.0mm*T2.20mm | 7g |
CF382025 | 3.0V | 350mAh | 150mA | 10 years | Max:L25.0mm*W20.5mm*T3.80mm | 4.0g | |
CF502540 | 3.0V | 1200mAh | 200mAh | 10 years | Max:L41.0mm*W25.0mm*T5.2mm | 10g | |
CF702236 | 3.0V | 1300mAh | 300mAh | 5 years | Max:L38.0mm*W22.5mm*T7.3mm | 11g |
