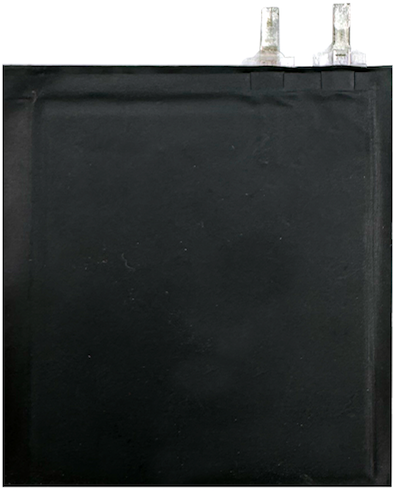

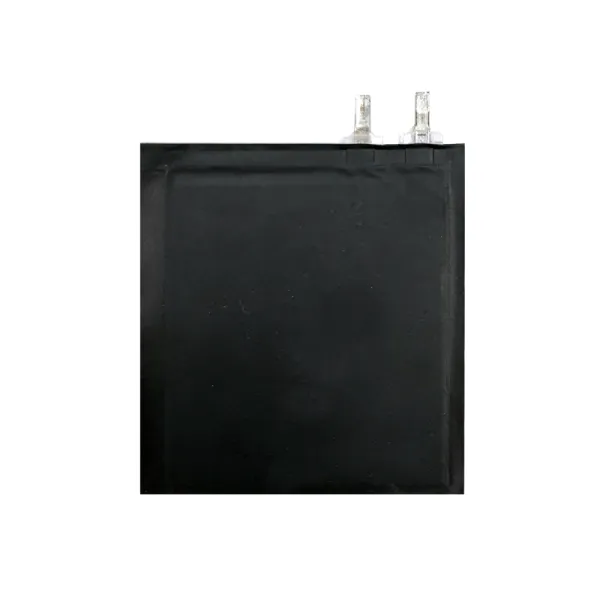

Primary lithium Li/MnO2 thin 1mm-2mm battery

Primary lithium Li/MnO2 thin 1mm-2mm battery

Features
OEM/ODM primary lithium Li/MnO2 battery

Model: CF104848, CF114752, CF124653 and more

Type: Primary lithium Li/MnO2 thin battery

High stability and safety.

Low self-discharge rate and long shelf life.

Self-discharge rate: less than 2% per year at room temperature.

Storage Temperature: -5°C to +35°C

Wide operational temperature range:-20°C to +60°C

Operational temperature of some specific models can be -35°C to +71°C.

Customize batteries and packages are available.


Applications

Intelligent instruments

Credit cards, Gift cards
Card type security systems
Medical Devices

Electronic Tags

GPS system
REID
IOT

Military filed.

Description

Model


Nominal Voltage (V)

Nominal capacity (mAh)

Max continuous discharge current (mA)

Storage life (years)

Dimension (mm)

Diameter*Thickness*Length*Width

Weight (g)

CF104848


3V

400mAh

50mA

5 years

Max:L48.0mm*W48.0mm*T1.05mm

3.5g

CF114752


3V

540mAh

100mA

5 years

Max:L52.5mm*W47.5mm*T1.15mm

5.0g

CF124653


3V

550mAh

150mA

10 years

Max:L53.0mm*W46.0mm*T1.25mm

5.5g
